Max Static Load4800 Kg.
Voltage400 V
Roping2/1
Brake110 V DC
Weight268 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Roping | Speed (in m/sec) | Height (m) | Sheave (mm) | Rope (mm) | No. of Grove | Power (KW) | Amp | Rating | INS Class | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VL 2700 10S | 1360 | 2/1 | 1.0 | ⩽80 | ∅320 | 8 | 8 | 9.0 | 25.7 | S5 (40%) | F Class | IP-40 |
| VL 2700 10S | 1360 | 2/1 | 1.5 | ⩽80 | ∅320 | 8 | 8 | 13.5 | 30.0 | S5 (40%) | F Class | IP-40 |
| VL 2700 10S | 1360 | 2/1 | 1.75 | ⩽80 | ∅320 | 8 | 8 | 16.0 | 32.0 | S5 (40%) | F Class | IP-40 |

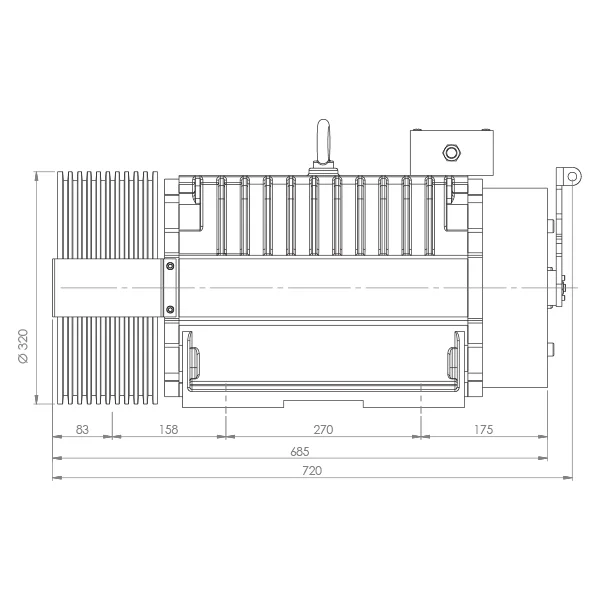

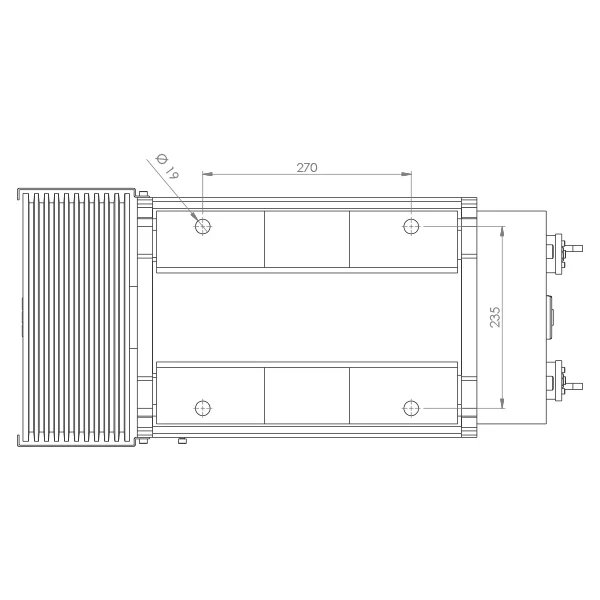

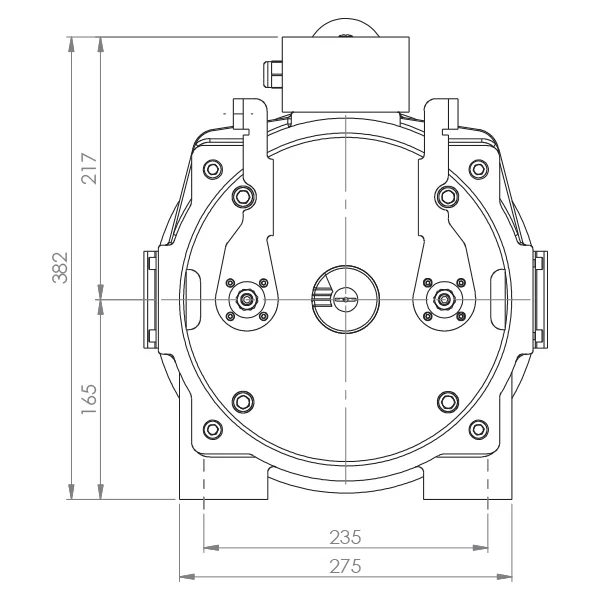

Technical Drawing
