Max Static Load2000 Kg.
Voltage230 V
Roping2/1
Brake110 V DC
Weight118 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Roping | Speed (in m/sec) | Height (m) | Sheave (mm) | Rope (mm) | No. of Grove | Power (KW) | Amp | Rating | INS Class | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VL 1000 05S | 408 | 2/1 | 0.5 | ⩽20 | ∅200 | 6 | 4 | 1.3 | 5.5 | S5 (40%) | F Class | IP-40 |

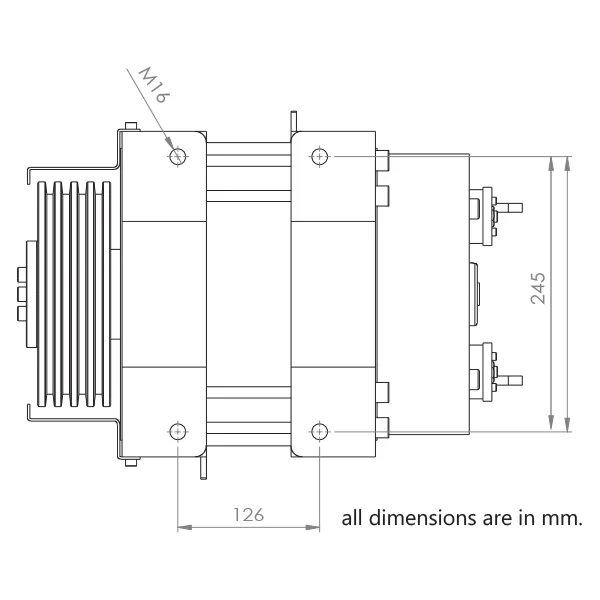

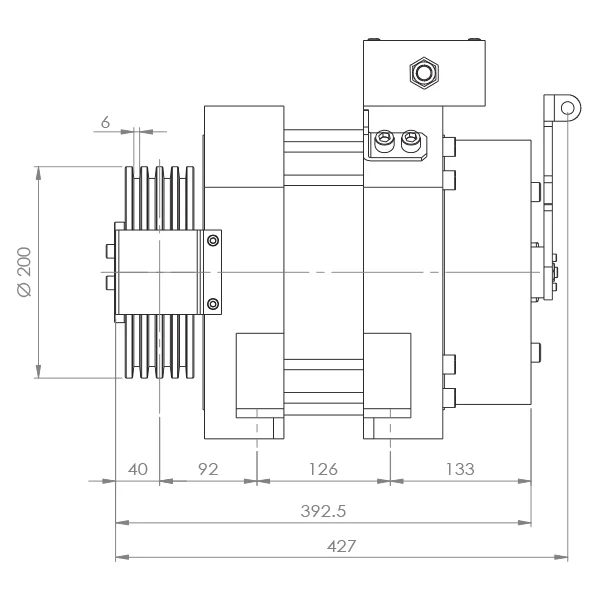

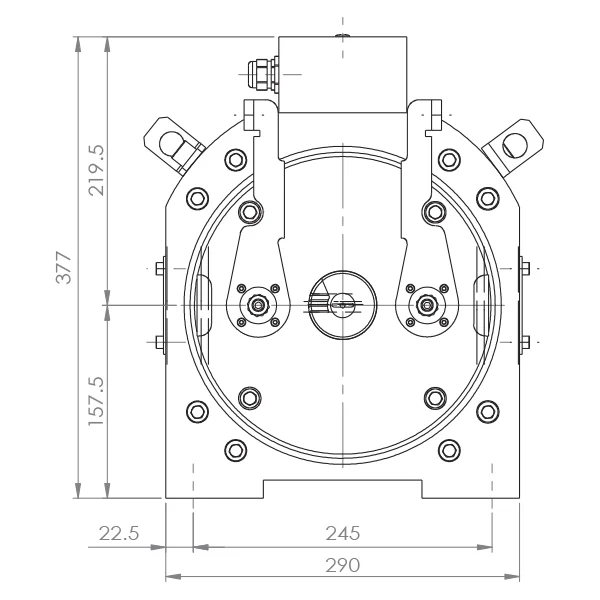

Technical Drawing
