Max Static Load3400 Kg.
Voltage400 V
Roping2/1
Brake110 V DC
Weight185 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Roping | Speed (in m/sec) | Height (m) | Sheave (mm) | Rope (mm) | No. of Grove | Power (KW) | Amp | Rating | INS Class | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VL 2300 10S | 884 | 2/1 | 1.0 | ⩽60 | ∅240 | 8 | 6 | 6.7 | 17.0 | S5 (40%) | F Class | IP-40 |
| VL 2300 10S | 884 | 2/1 | 1.0 | ⩽60 | ∅320 | 8 | 6 | 6.7 | 17.2 | S5 (40%) | F Class | IP-40 |

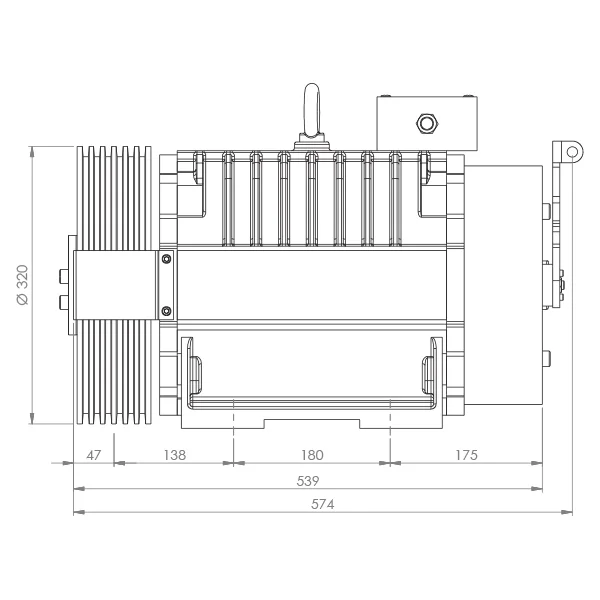

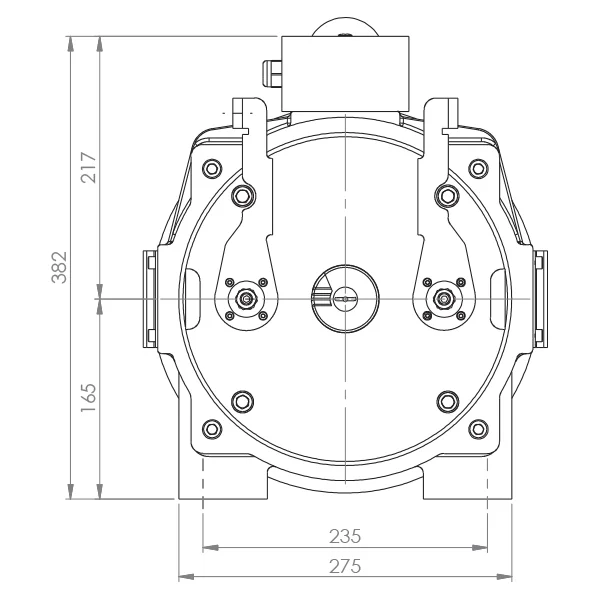

Technical Drawing
