Load Capacity500 Kg.
Power Range3.7, 4.5 kW.
Brake Voltage48, 60, 110, 220 DC.
Oil Capacity3.5 Ltr. (Approx)
Weight300 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Ratio | Rope | Power (KW) | Power (HP) |
|---|---|---|---|---|---|
| DR 06 | 450 | 40:1 | 8 mm / 10 mm | 3.7 | 5 |
| DR 06 | 500 | 40:1 | 8 mm / 10 mm | 4.5 | 6 |

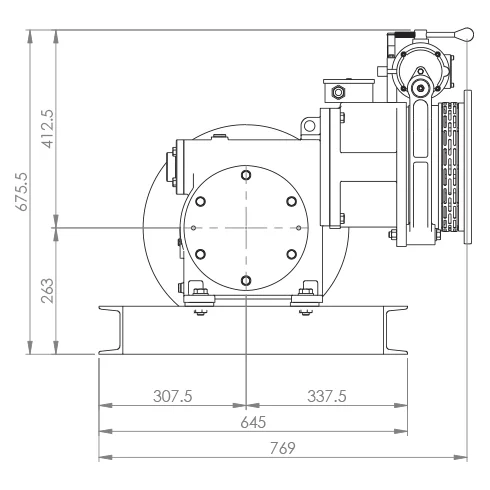

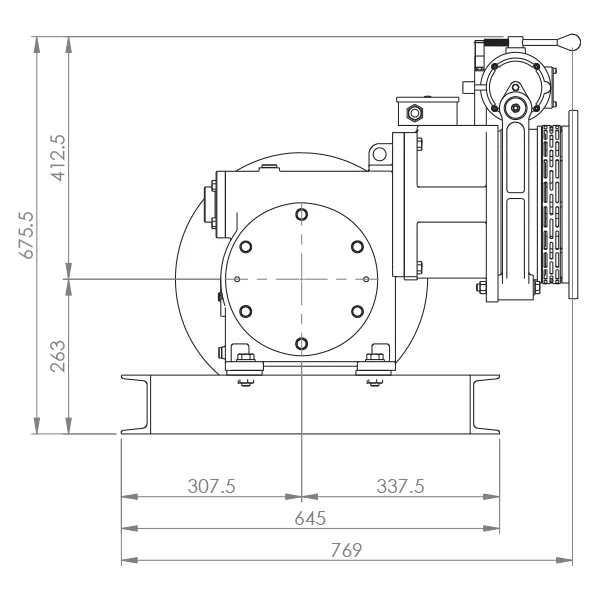

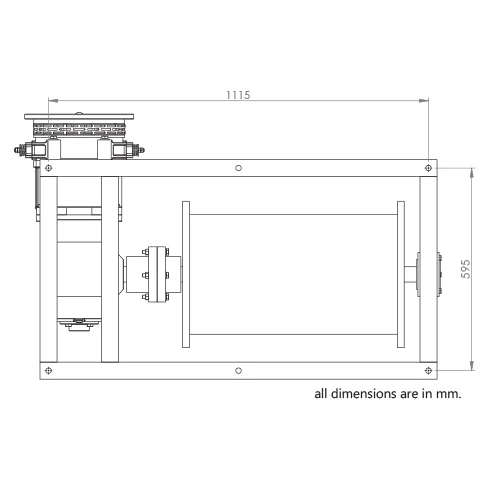

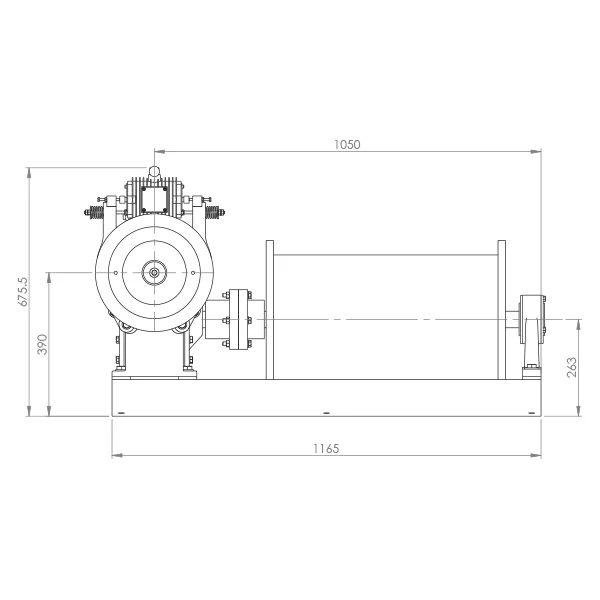

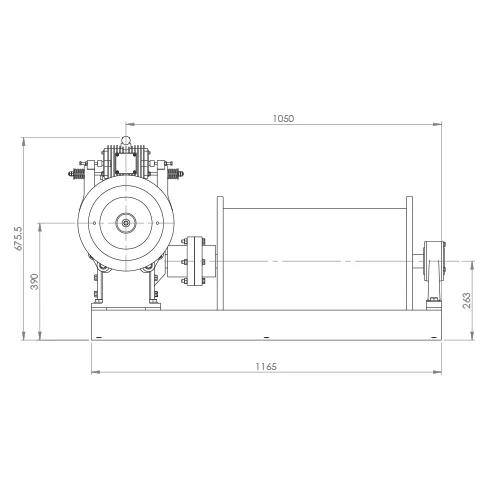

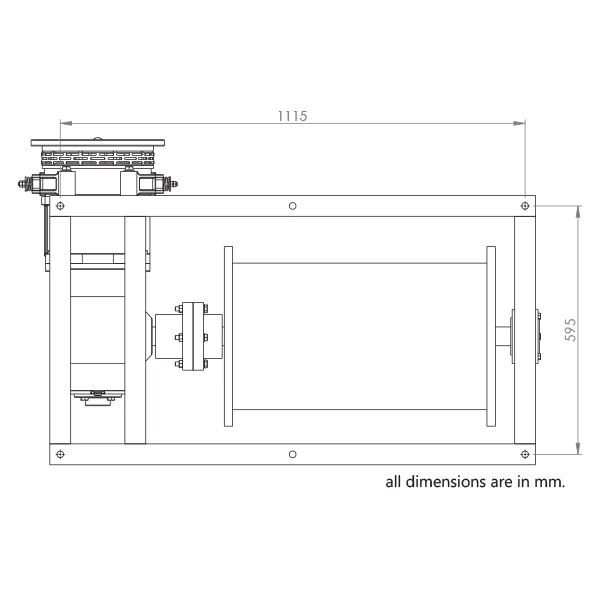

Technical Drawing
