Load Capacity750, 1000 Kg.
Power Range5.5, 7.5 kW.
Brake Voltage48, 60, 110, 220 DC.
Oil Capacity3.5 Ltr. (Approx)
Weight320 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Ratio | Rope | Power (KW) | Power (HP) |
|---|---|---|---|---|---|
| DR 08 | 750 | 40:1 | 8 mm / 10 mm | 5.5 | 7.5 |
| DR 08 | 1000 | 40:1 | 8 mm / 10 mm | 7.5 | 10 |

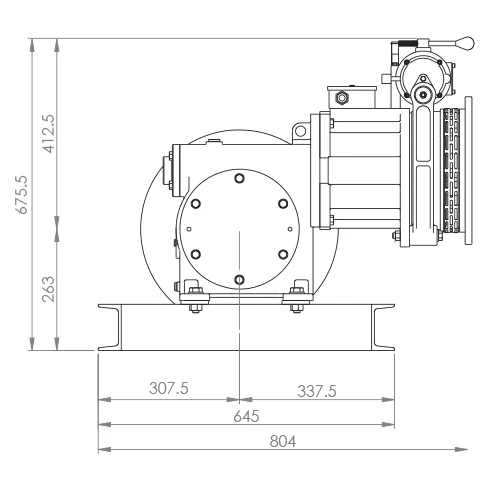

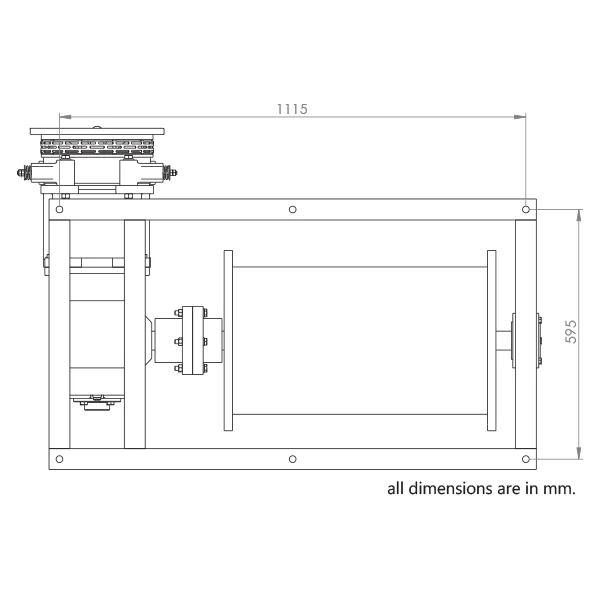

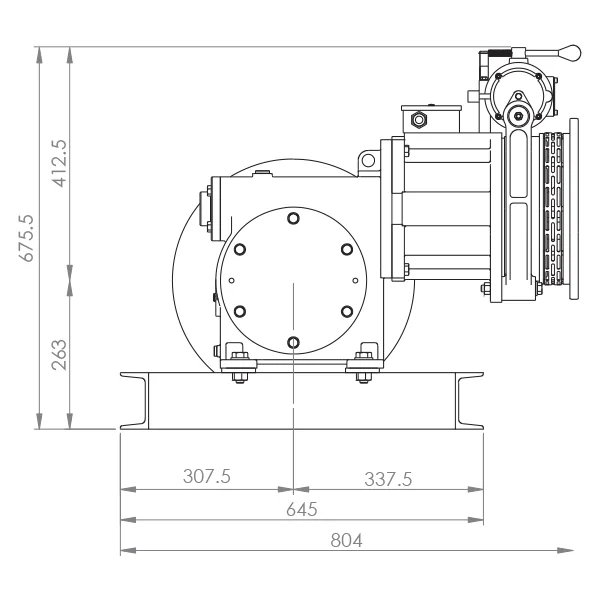

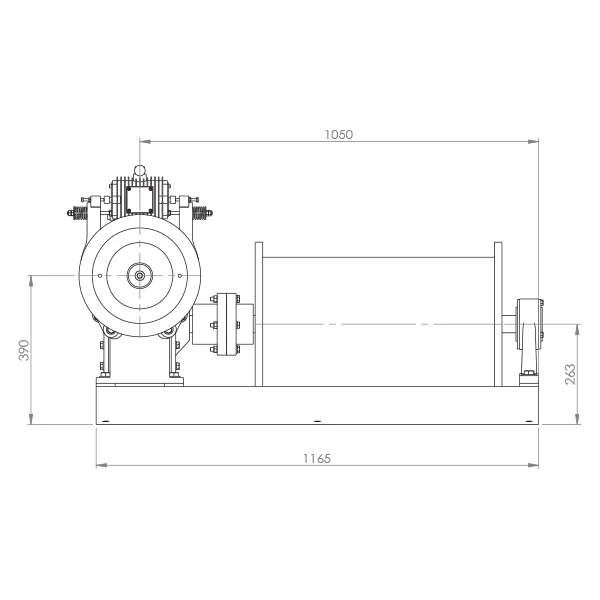

Technical Drawing
