Max Static Load3800 Kg.
Power Range7.5 kW.
Brake Voltage48, 60, 110, 220 DC.
Sheave Range530, 560, 610 mm.
Oil Capacity3.5 Ltr. (Approx)
Weight315 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Pole | Travel |
|---|---|---|---|---|---|---|---|---|---|---|
| VI 10 UT SUPER | 680 | 1.00 | 1/45 | 530 | 10/13 x 3/4 | 1:1 | 7.5 | 10 | 4 | 30 |
| VI 10 UT SUPER | 1360 | 0.65 | 1/45 | 530 | 10/13 x 3/4 | 2:1 | 7.5 | 10 | 4 | 26 |

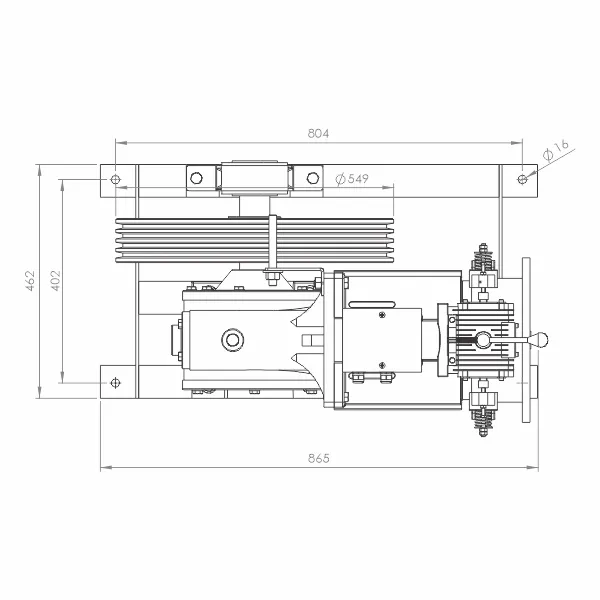

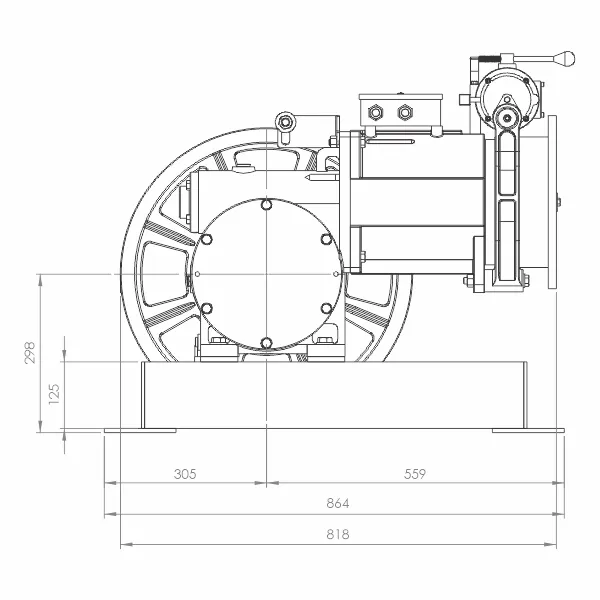

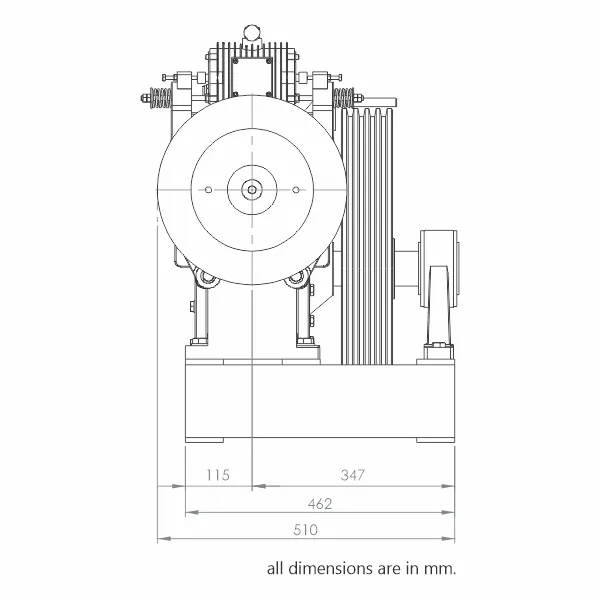

Technical Drawing
