Max Static Load3100 Kg.
Power Range5.5 kW.
Brake Voltage48, 60, 110, 220 DC.
Sheave Range530, 560, 610 mm.
Oil Capacity3.5 Ltr. (Approx)
Weight275 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Pole | Travel |
|---|---|---|---|---|---|---|---|---|---|---|
| VI 7.5 UT SUPER | 544 | 0.65 | 1/40 | 530 | 10/13 x 3/4 | 1:1 | 5.5 | 7.5 | 6 | 30 |
| VI 7.5 UT SUPER | 544 | 1.00 | 1/40 | 530 | 10/13 x 3/4 | 1:1 | 5.5 | 7.5 | 4 | 30 |
| VI 7.5 UT SUPER | 1000 | 0.65 | 1/40 | 530 | 10/13 x 3/4 | 2:1 | 5.5 | 7.5 | 4 | 26 |

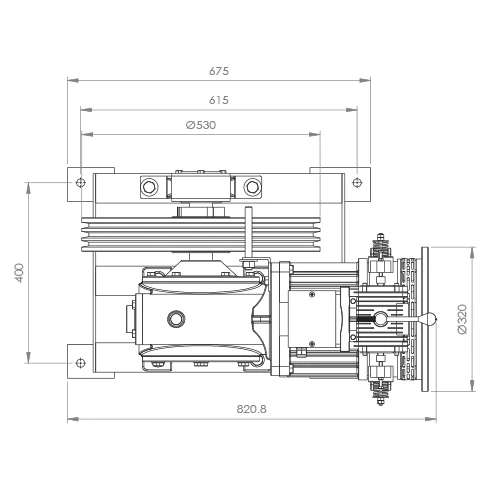

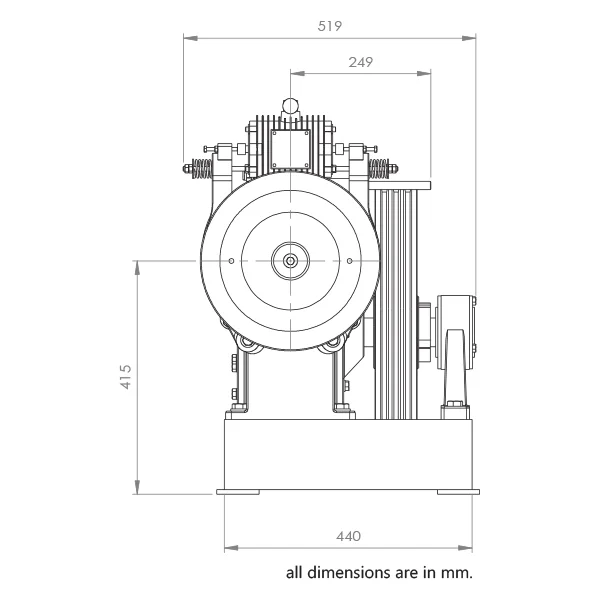

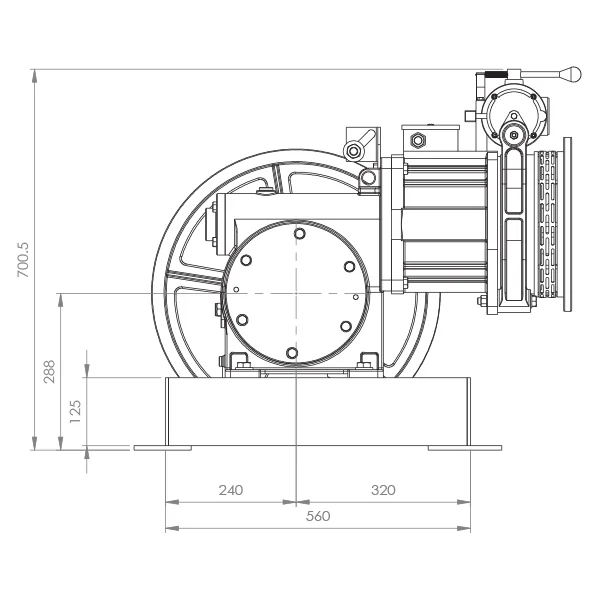

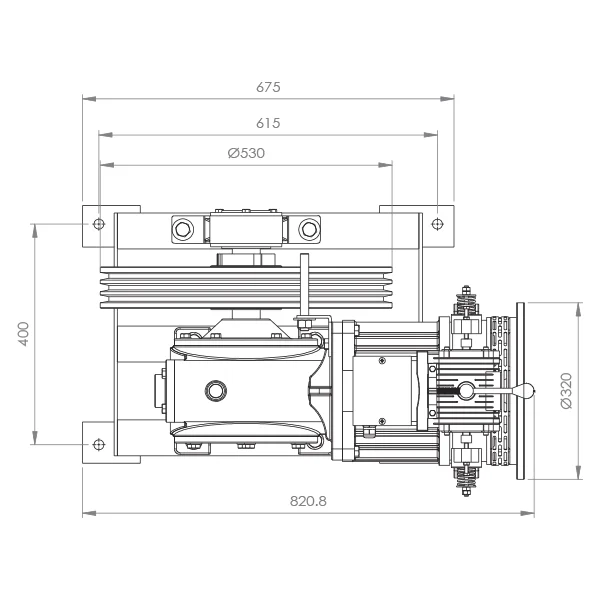

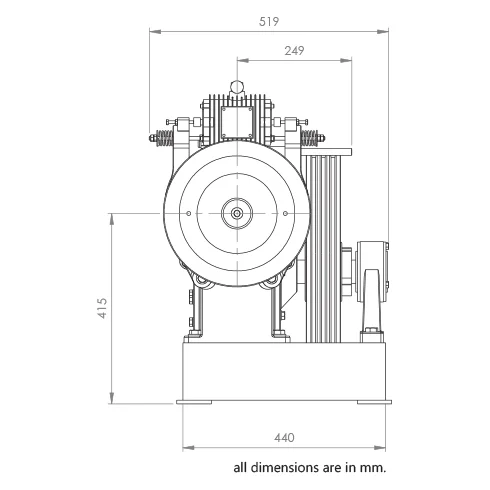

Technical Drawing
