Max Static Load3000 Kg.
Power Range3, 3.7, 4.5 kW.
Brake Voltage48, 60, 110, 220 DC.
Sheave Range530 mm.
Oil Capacity3 Ltr. (Approx)
Weight230 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Pole | Travel |
|---|---|---|---|---|---|---|---|---|---|---|
| VI5UT SMART | 408 | 0.70 | 38/1 | 530 | 10/13 x 3 | 1:1 | 3.7 | 5 | 6 | 23 |
| VI5UT SMART | 544 | 0.35 | 38/1 | 530 | 10/13 x 3 | 2:1 | 3.7 | 5 | 6 | 21 |

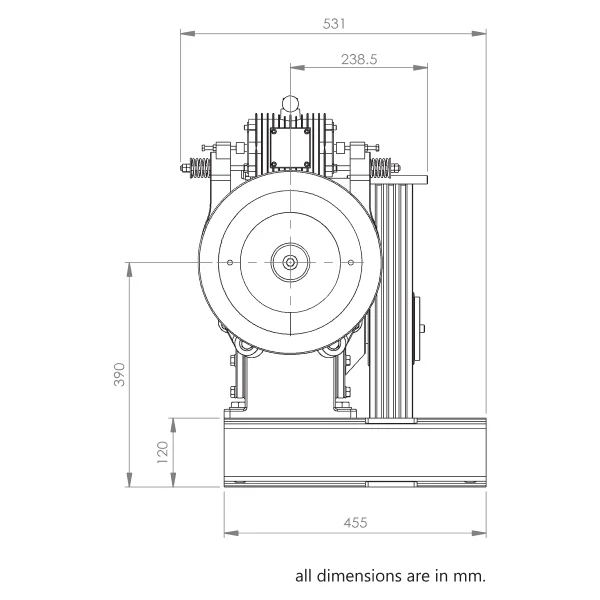

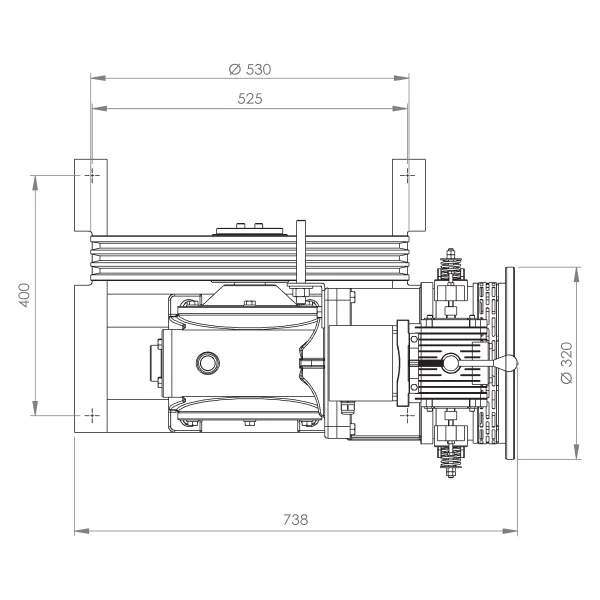

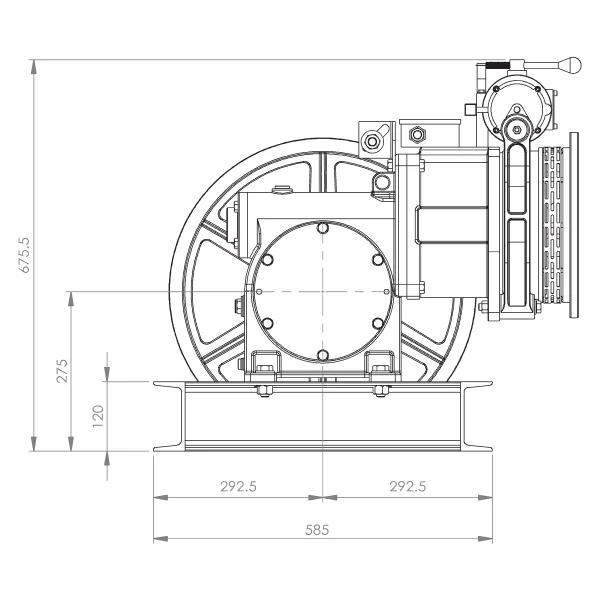

Technical Drawing
