Gearless

VL 1500 10s

Additional Information

Model Load (in kg) Roping Speed (in m/sec) Height (m) Sheave (mm) Rope (mm) No. of Grove Power (KW) Amp Rating INS Class IP Class
VL 1500 10S 544 2/1 1.0 ⩽60 ∅240 8 4 3.8 9.5 S5 (40%) F Class IP-40
VL 1500 10S 544 2/1 1.0 ⩽60 ∅320 8 4 3.8 9.6 S5 (40%) F Class IP-40
VL 1500 10S 544 2/1 1.5 ⩽60 ∅320 8 4/5 5.6 13.0 S5 (40%) F Class IP-40

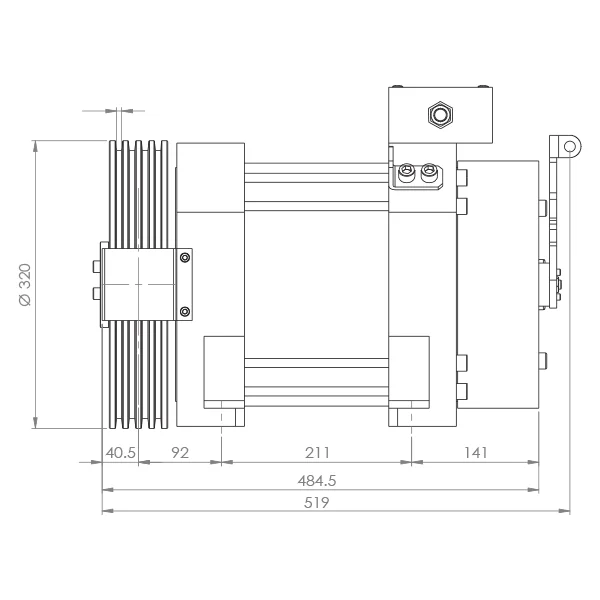

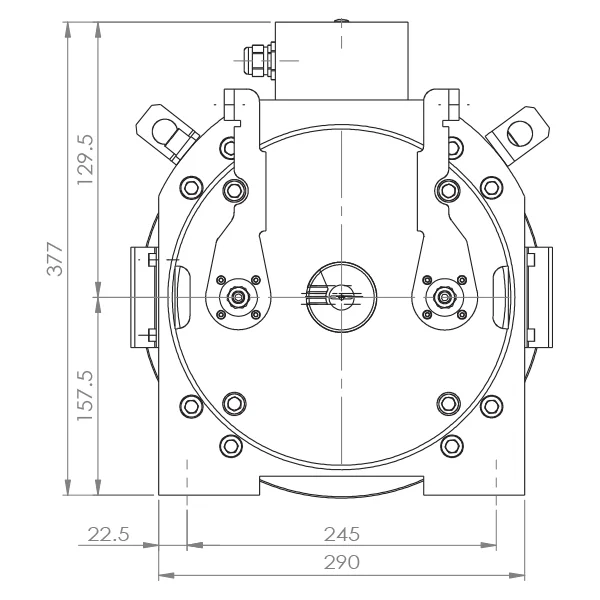

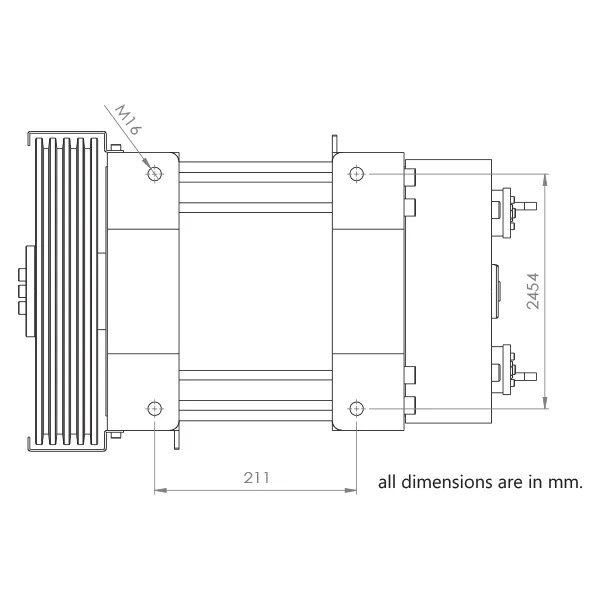

Technical Drawing
