Geared

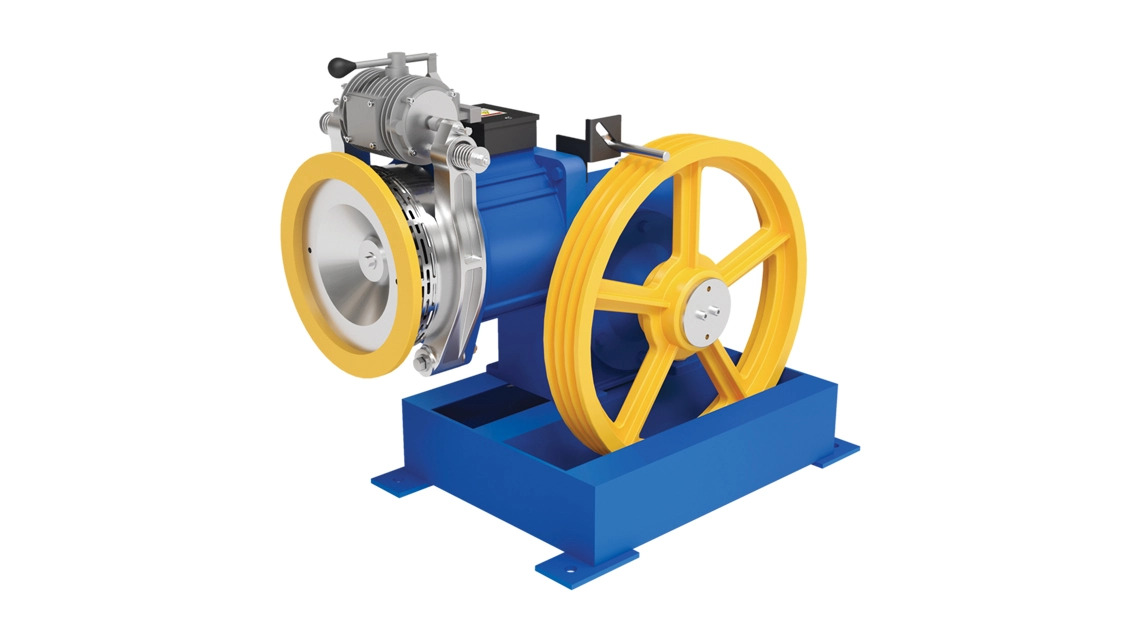

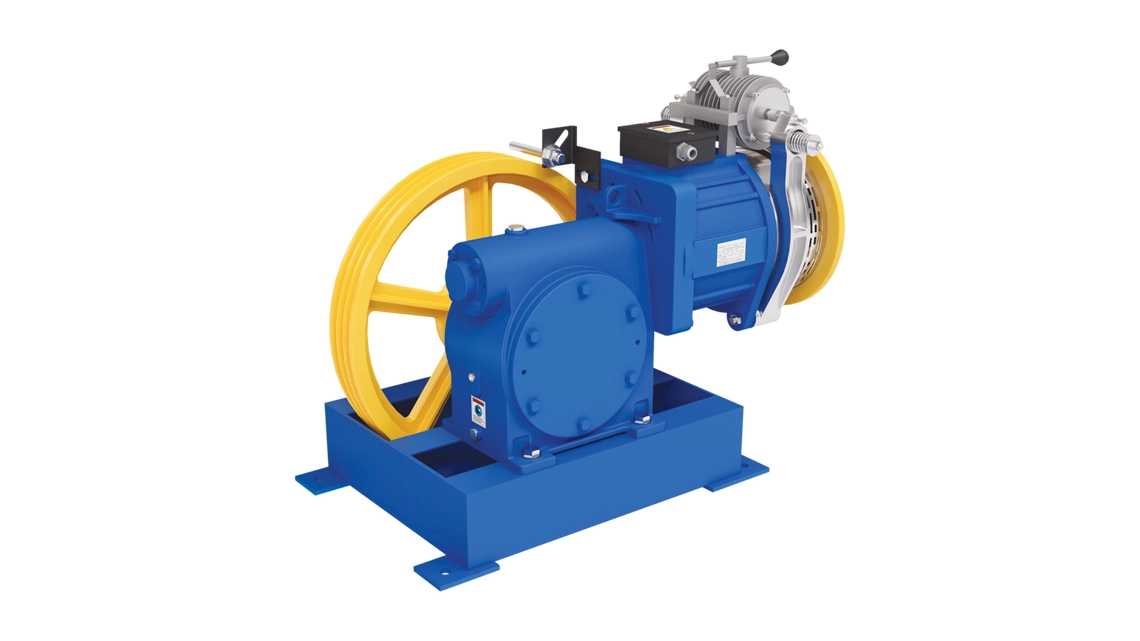

VI-7.5 UT - SMART

Additional Information

Model Load (in kg) Speed (in m/sec) Ratio Sheave Rope Ropeing Power (KW) Power (HP) Pole Travel
VI 7.5 UT SMART 544 0.65 1/40 530 10/13 x 3/4 1:1 5.5 7.5 6 30
VI 7.5 UT SMART 544 1.00 1/40 530 10/13 x 3/4 1:1 5.5 7.5 4 30
VI 7.5 UT SMART 1000 0.65 1/40 530 10/13 x 3/4 2:1 5.5 7.5 4 26

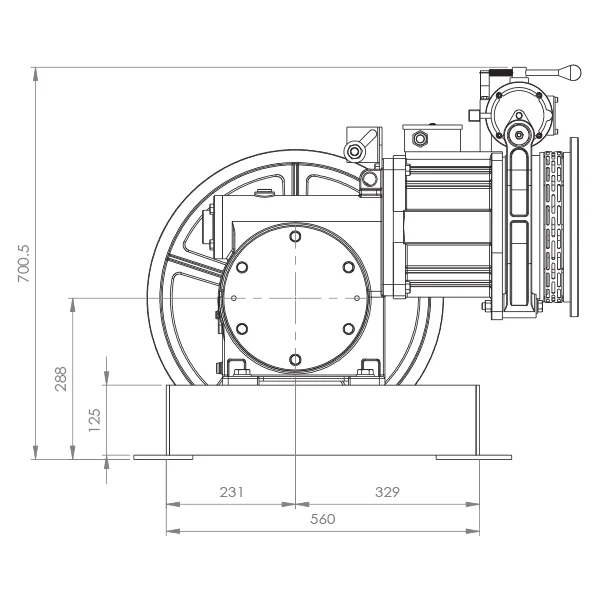

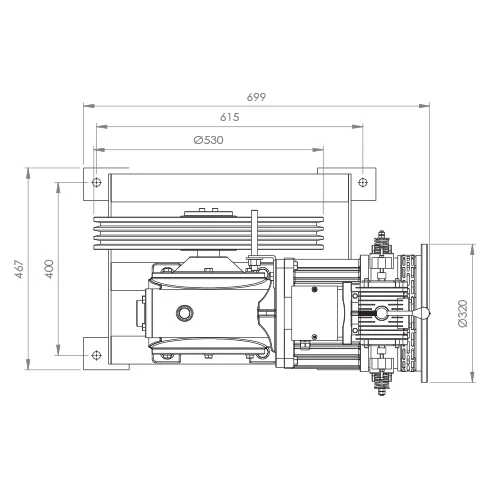

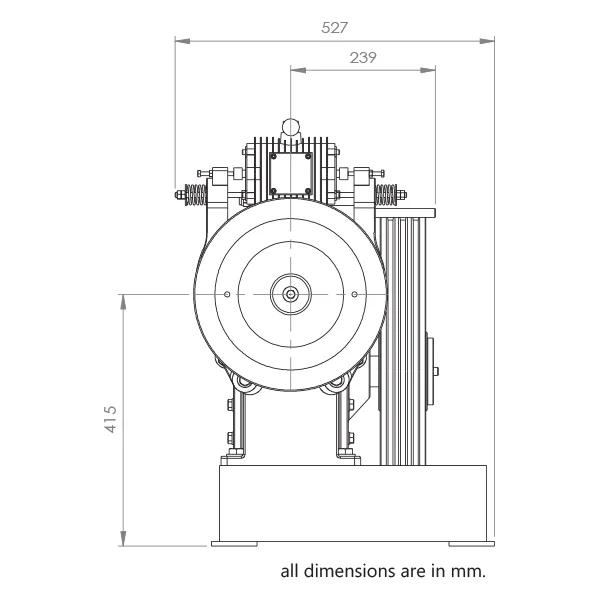

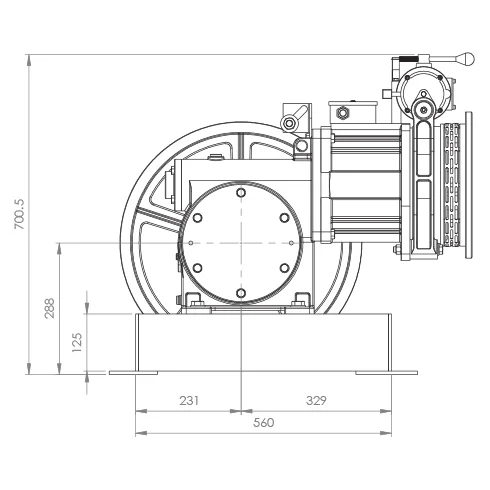

Technical Drawing
