Gearless

VL 1000 10s - N2

Additional Information

Model Load (in kg) Roping Speed (in m/sec) Height (m) Sheave (mm) Rope (mm) No. of Grove Power (KW) Amp Rating INS Class IP Class
VL 1000 10S 450 2/1 1.0 ⩽60 ∅320 8 4 3.0 8.8 S5 (40%) F Class IP-40
VL 1000 10S 408 2/1 1.5 ⩽60 ∅320 8 4 4.2 9.8 S5 (40%) F Class IP-40
VL 1000 10S 408 2/1 1.75 ⩽60 ∅320 8 4 5.1 12.8 S5 (40%) F Class IP-40

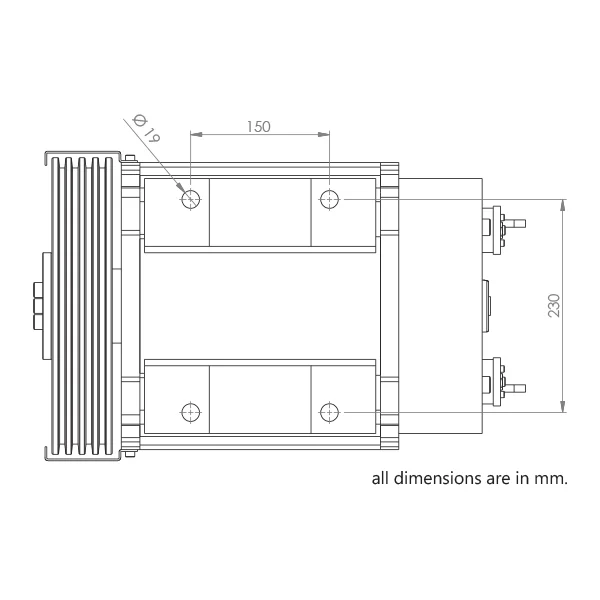

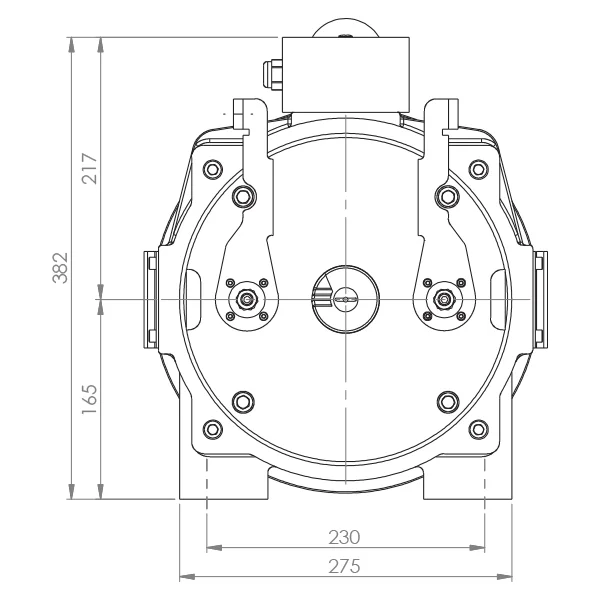

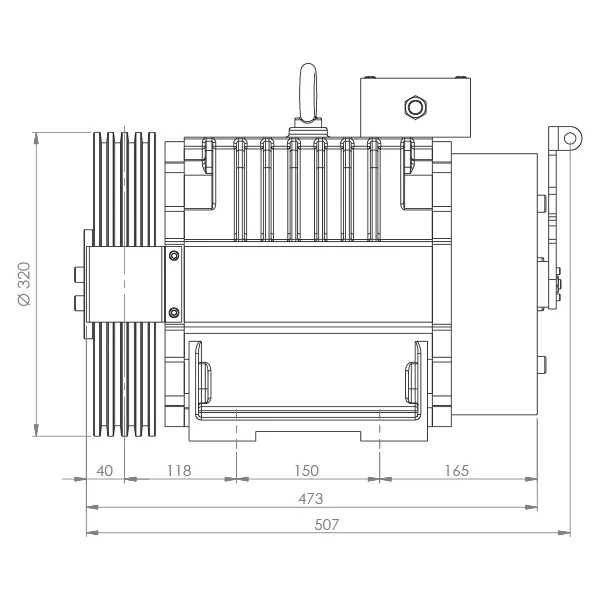

Technical Drawing
